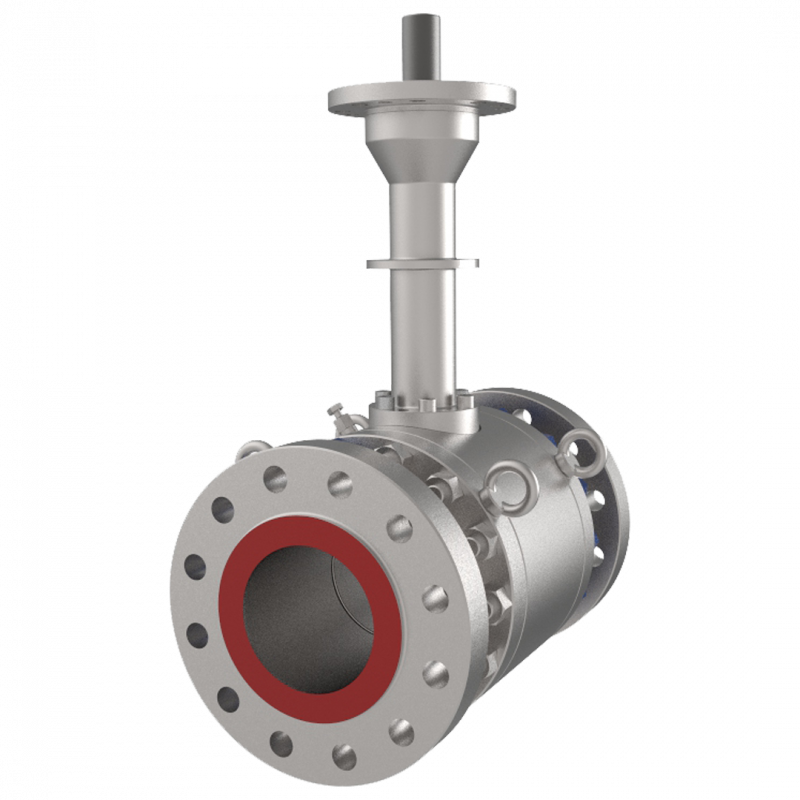

Cryogenic Side-Entry Floating Ball Valve

Cryogenic Side-Entry Floating Ball Valves

Features

Cryogenic Side-Entry Floating Ball Valves are widely used in typical cryogenic applications like LNG, LPG applications.
They feature a split-body side entry, a seat-supported floating ball for sealing against the downstream seat via line pressure, and an extended bonnet to protect packing from extreme temperatures.

Specifications

- Size Range: NPS 1/2-2 (DN 15-50)
- Pressure Class: CLASS 150 - CLASS 1500
- Valve design: Based on bs6364 and MSS SP 134 standards
- Temperature range: -320 to 212°F (-196 to 120°C)
- Face-to-Face: ASME B16.10 / API 6D
- End connections: RF, RTJ as per ASME B16.5 / SW,NPT as per ASME B16.11
- Design: ASME B16.34, API 607 & 6FA
- Inspection & Test: Compliance with BS 6364
- General Features
Anti-Static Device
Blow-Out proof Stem
Fire Safety Design
Locking device
Iso pad
- Additional Features
NACE MR0175/ISO 15156-1
Low Fugitive Emissions to API 641
Lockable
